UNI-T UTi320E Thermal Imaging Kit
A professional handheld thermal imager built for clearer fault finding: 320 × 240 IR resolution, 25Hz imaging, 3.5-inch display, visible-light fusion, Wi-Fi photo download and PC analysis workflow.
Price on request
Inspection-grade value, clear buyer proof.
Visibly stronger than a value model, still simple enough for daily maintenance teams.
Sharper thermal evidence
More thermal pixels help buyers identify hot spots, uneven heating and equipment anomalies with better visual proof.
Smooth inspection flow
A faster refresh rate makes handheld scanning feel natural when checking panels, HVAC outlets and moving inspection paths.
Wide measurement range
Covers building diagnostics, electrical maintenance, factory checks, solar panels and automotive repair workflows.
Easier issue location
Thermal, visible light, picture-in-picture and fusion modes help connect heat patterns to physical components.
Inspection documentation
Download photos by app and review with PC analysis/projection software for reporting and follow-up.
Field-ready body
IP54 protection and 2-meter drop rating support daily maintenance use across tougher job sites.
Use it where downtime gets expensive.
Prevent downtime, confirm a repair, or document a hidden problem before it becomes expensive.
Electrical
Spot abnormal heat in panels, connectors and distribution equipment.
HVAC
Check outlet uniformity, blocked vents and insulation problems.
Factory maintenance
Scan motors, bearings, lines and production equipment without contact.
Solar
Find hot spots, defects, dirt and shading issues on photovoltaic panels.
Automotive
Inspect thermal behavior in repair and transport maintenance scenarios.
Building
Trace leakage, insulation gaps and heating/cooling imbalance.

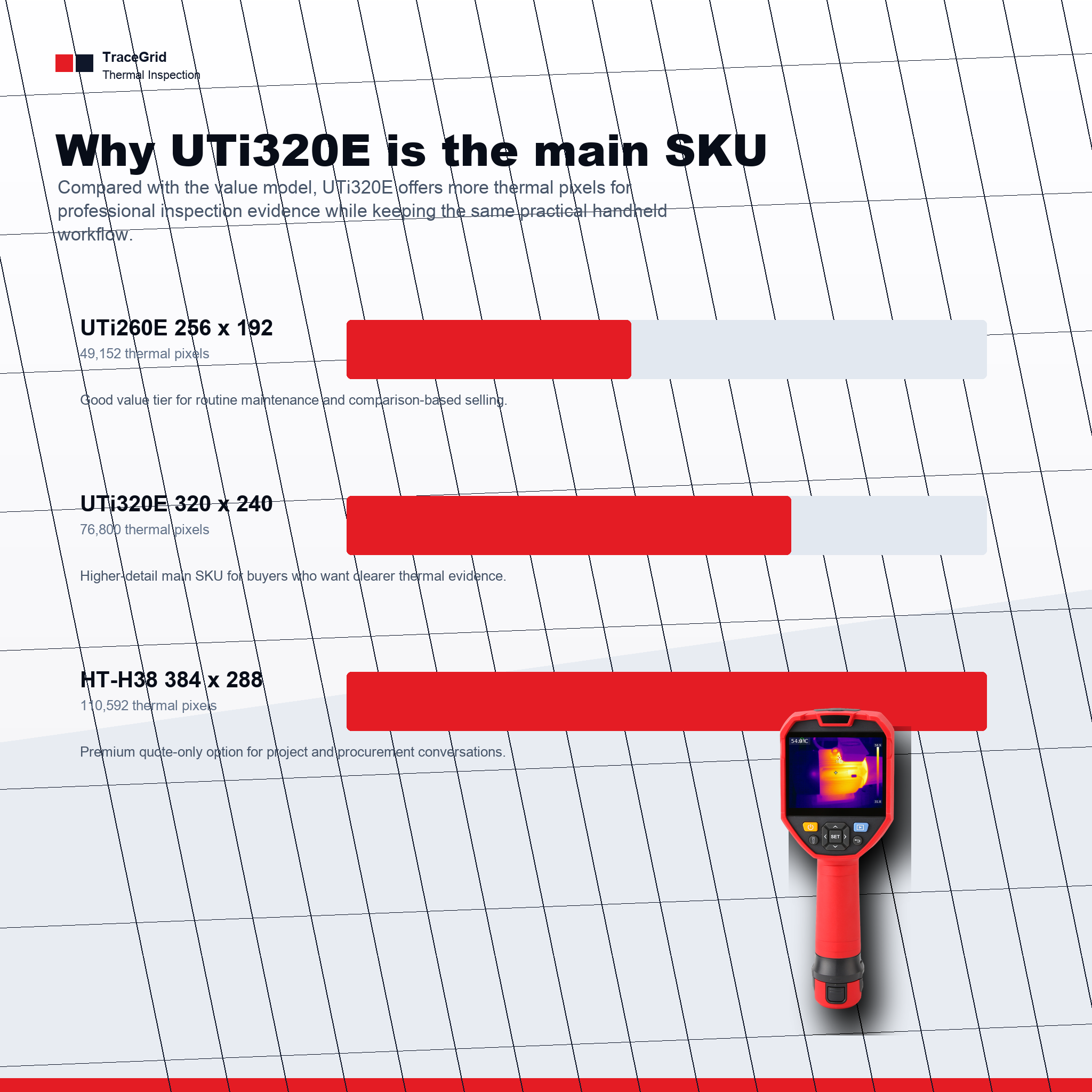

Why UTi320E is the main SKU.
Compared with the value model, UTi320E offers more thermal pixels for professional inspection evidence while keeping the same practical handheld workflow.

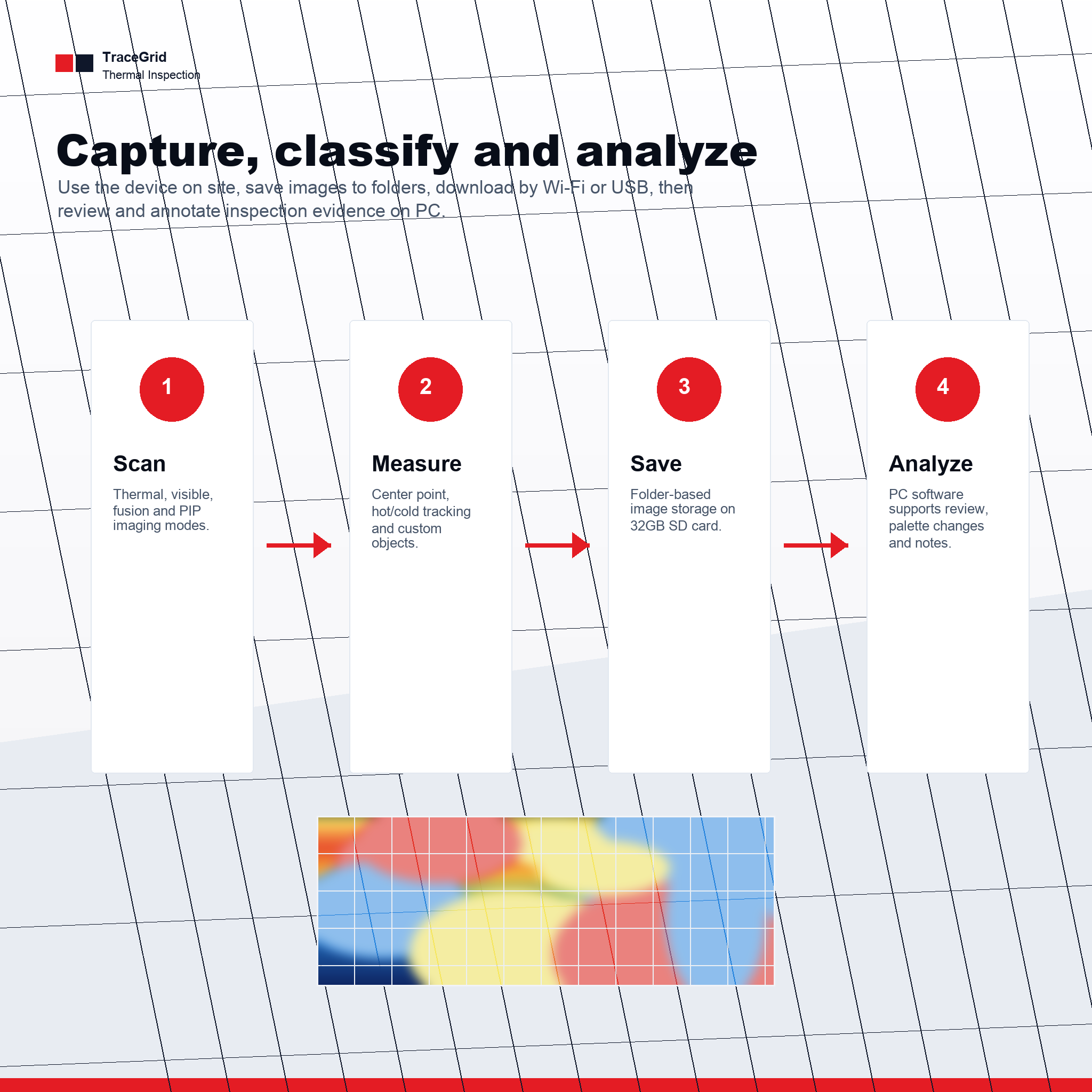

Capture, classify and analyze
Use the device on site, save images to folders, download by Wi-Fi or USB, then review and annotate inspection evidence on PC.

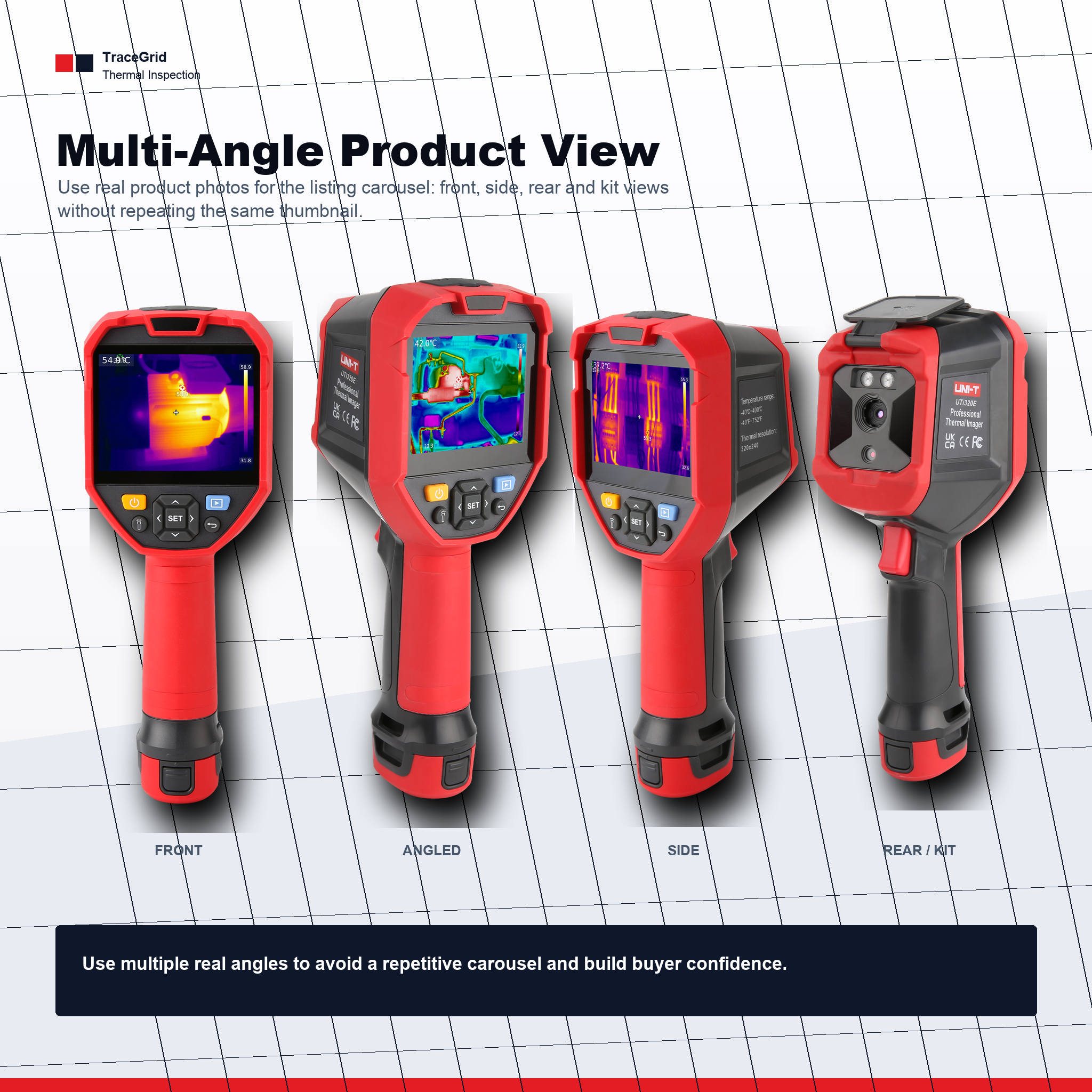

Product image set.
Click any image to view it full size.

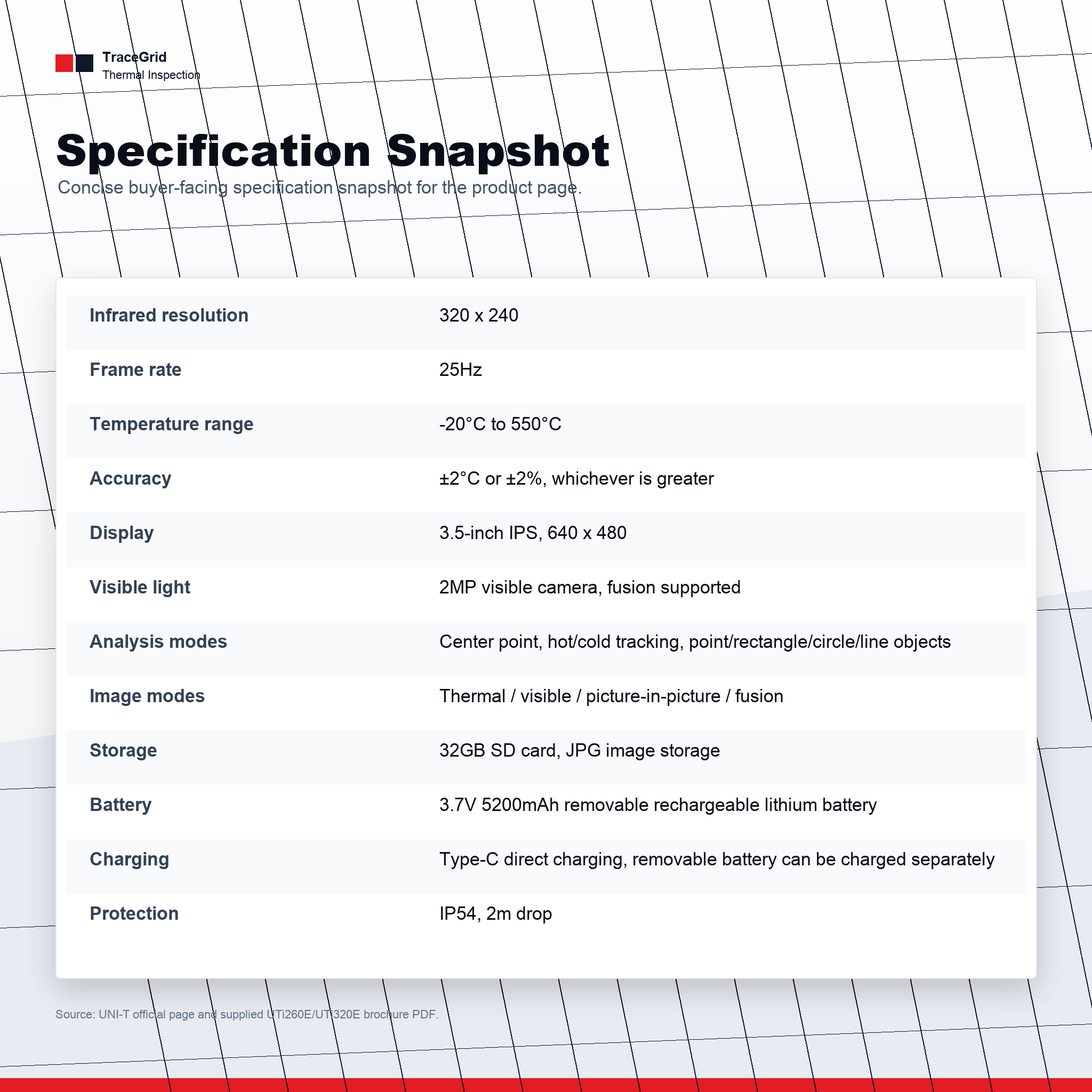

Technical specifications.
Source: UNI-T official page and supplied UTi260E/UTi320E brochure PDF.
| Infrared resolution | 320 × 240 |
| Frame rate | 25Hz |
| Temperature range | -20°C to 550°C |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Display | 3.5-inch IPS, 640 × 480 |
| Visible light | 2MP visible camera, fusion supported |
| Analysis modes | Center point, hot/cold tracking, point/rectangle/circle/line objects |
| Image modes | Thermal / visible / picture-in-picture / fusion |
| Storage | 32GB SD card, JPG image storage |
| Battery | 3.7V 5200mAh removable rechargeable lithium battery |
| Charging | Type-C direct charging, removable battery can be charged separately |
| Protection | IP54, 2m drop |
Ready to buy the UTi320E online?
Buy now via PayPal — or request a bulk / OEM quote for larger quantities. For the HT-H38 premium tier, see its quote page.
