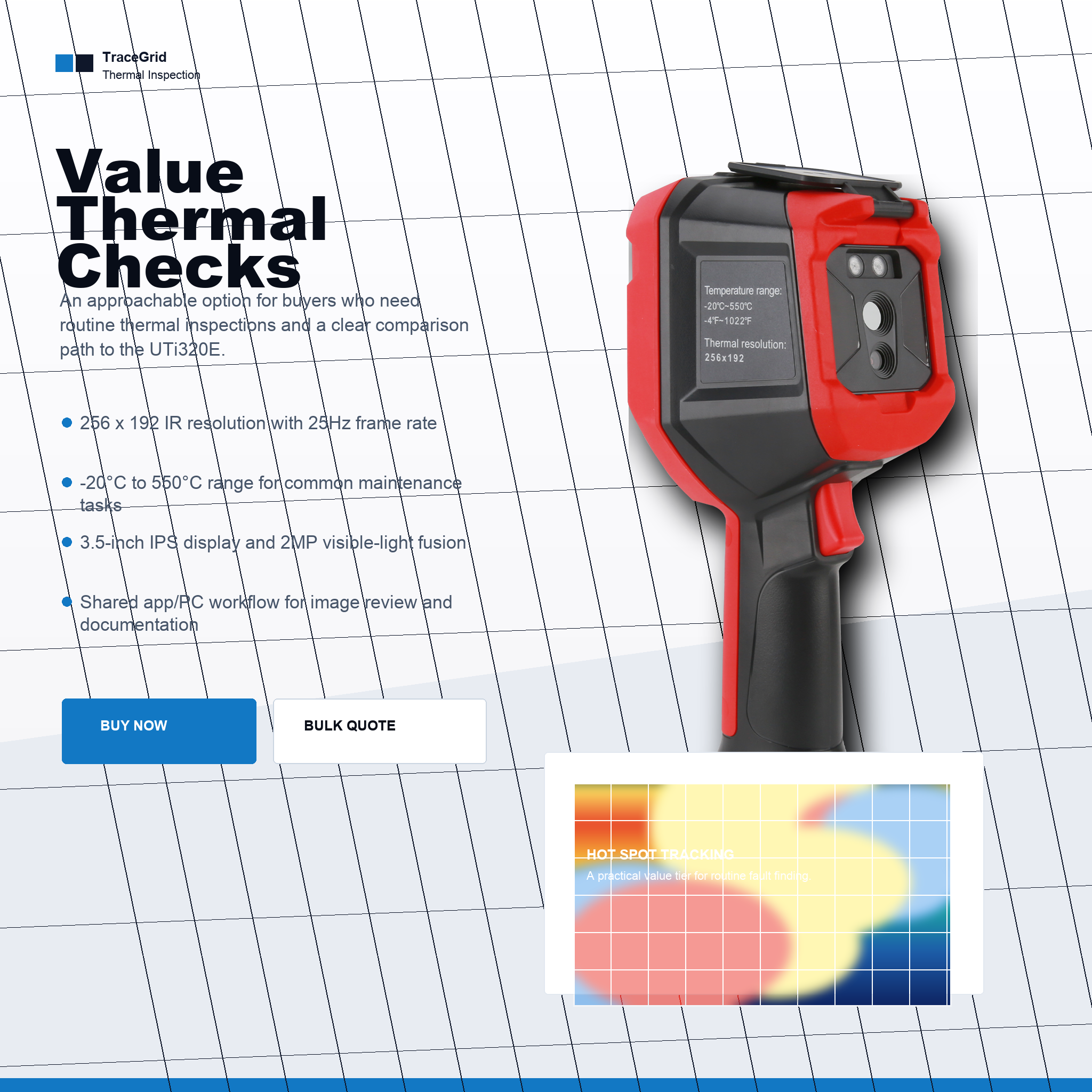

UNI-T UTi260E Thermal Option
UTi260E gives buyers the essential handheld thermal workflow: 256 × 192 IR resolution, 25Hz imaging, a wide -20°C to 550°C measurement range and the same practical screen and software ecosystem.
Price on request
The essential thermal workflow, at value.
Everything you need for routine maintenance checks — with a clear path to step up when you need more pixels.
Essential thermal detail
256 × 192 IR resolution identifies hot spots and equipment anomalies for common maintenance tasks.
Smooth 25Hz flow
A fast refresh rate keeps handheld scanning natural when checking panels and moving routes.
Wide measurement range
-20°C to 550°C covers the maintenance tasks most teams face day to day.
Visible-light fusion
3.5-inch IPS screen and 2MP visible fusion map heat patterns to real components.

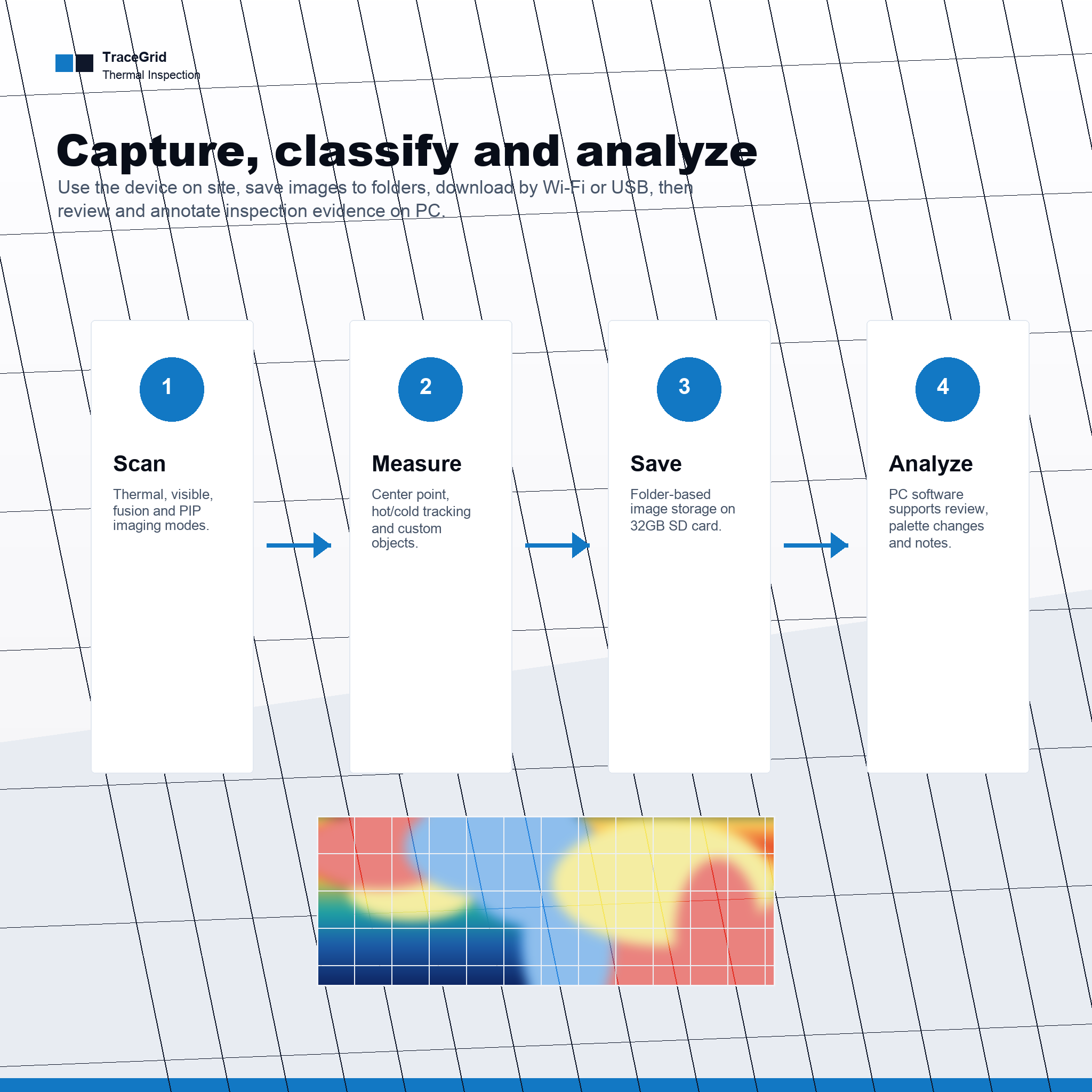

Shared app & PC workflow
Same app and PC analysis ecosystem as the higher models, for image review and documentation.
Field-ready body
IP54 protection and 2-meter drop rating support daily use across job sites.
Use it where downtime gets expensive.
Prevent downtime, confirm a repair, or document a hidden problem before it becomes expensive.
Electrical
Spot abnormal heat in panels, connectors and distribution equipment.
HVAC
Check outlet uniformity, blocked vents and insulation problems.
Factory maintenance
Scan motors, bearings, lines and production equipment without contact.
Solar
Find hot spots, defects, dirt and shading issues on photovoltaic panels.
Automotive
Inspect thermal behavior in repair and transport maintenance scenarios.
Building
Trace leakage, insulation gaps and heating/cooling imbalance.

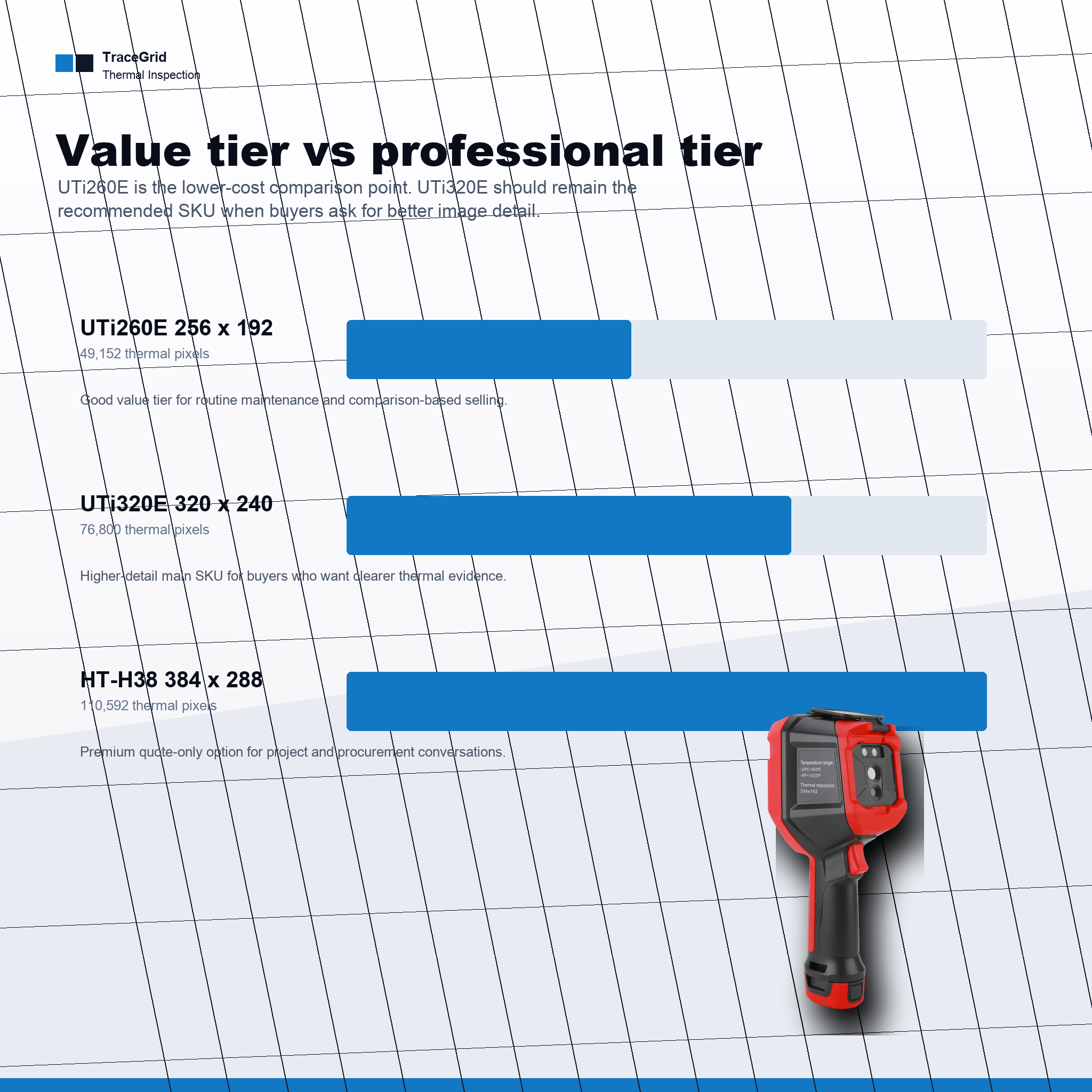

Need more pixels? Step up to UTi320E.
UTi260E is the smart entry point. When inspections demand sharper evidence, UTi320E adds professional 320 × 240 detail on the same workflow.
The upgrade path is simple
Both models share the same app, PC analysis software and field-ready body. The only real difference is thermal resolution — and it shows in the evidence you can hand to a client.

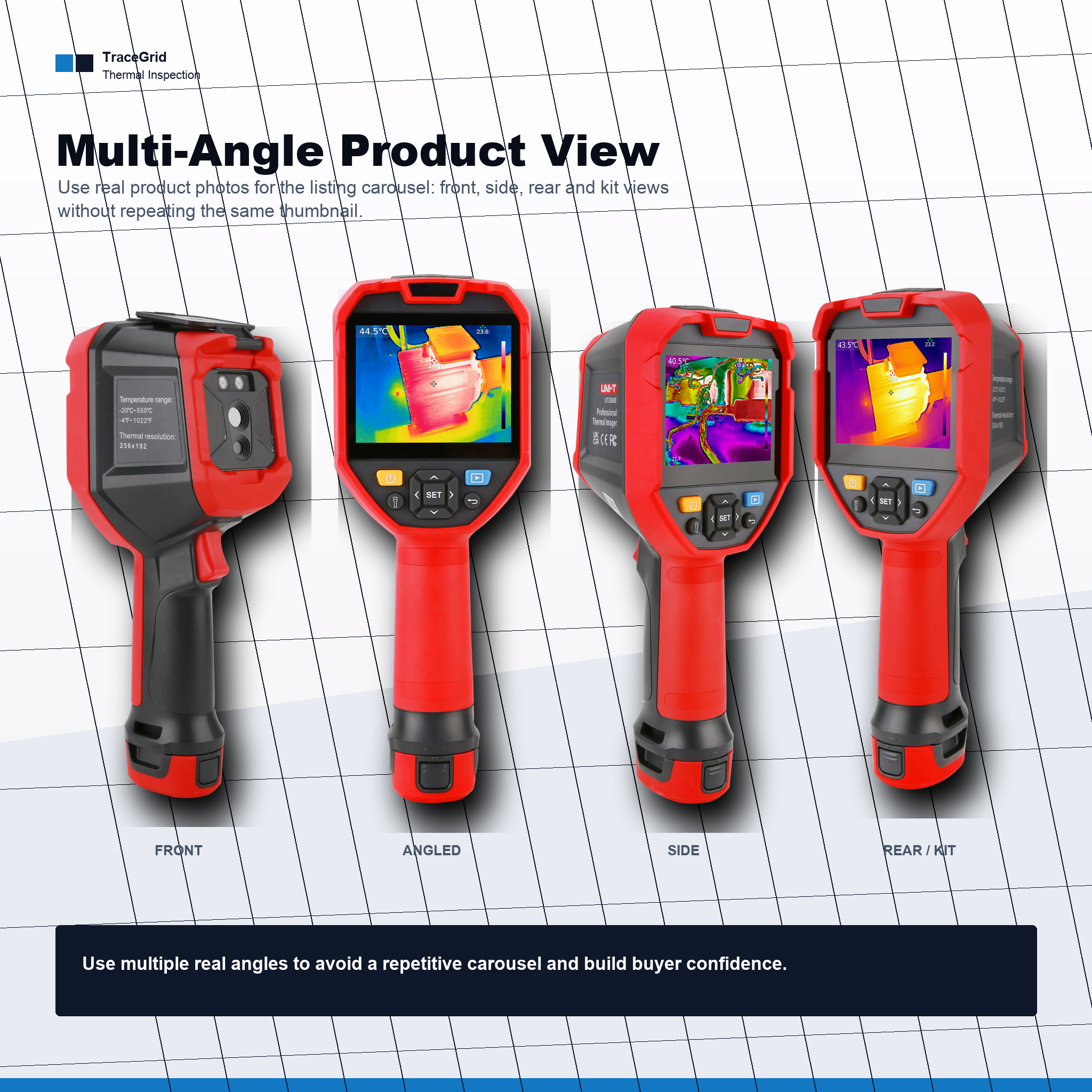

Product image set.
Click any image to view it full size.

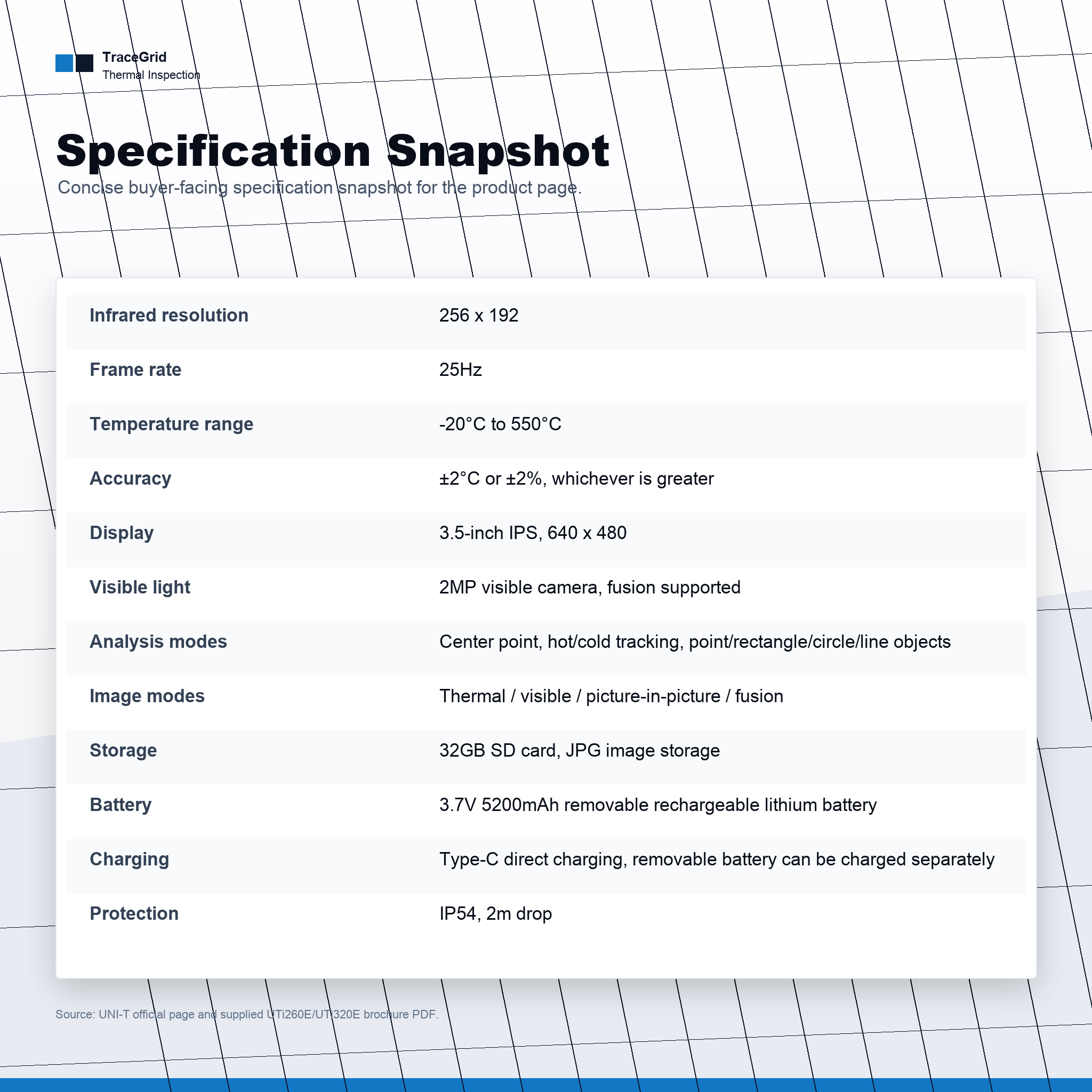

Technical specifications.
Source: UNI-T official page and supplied UTi260E/UTi320E brochure PDF.
| Infrared resolution | 256 × 192 |
| Frame rate | 25Hz |
| Temperature range | -20°C to 550°C |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Display | 3.5-inch IPS, 640 × 480 |
| Visible light | 2MP visible camera, fusion supported |
| Analysis modes | Center point, hot/cold tracking, point/rectangle/circle/line objects |
| Image modes | Thermal / visible / picture-in-picture / fusion |
| Storage | 32GB SD card, JPG image storage |
| Battery | 3.7V 5200mAh removable rechargeable lithium battery |
| Charging | Type-C direct charging, removable battery can be charged separately |
| Protection | IP54, 2m drop |
Buy the UTi260E now, or step up later.
Available to buy online via PayPal. Need bulk pricing or a higher-resolution model? Compare or request a quote.
